Replacing a worn or broken sliding door lock can restore your patio door's security and make it operate like new. However, one of the biggest mistakes homeowners make is ordering a replacement lock without taking the proper measurements first.
Sliding door locks come in many different sizes and configurations, and even locks that look nearly identical may not be interchangeable. Taking a few simple measurements before purchasing a replacement can save you time, money, and the frustration of receiving a lock that doesn't fit.
In this guide, we'll explain exactly how to measure your existing sliding door lock so you can confidently choose the correct replacement.
Unlike standard residential door locks, sliding glass door locks are not universal. Manufacturers have used different mortise lock dimensions, screw locations, faceplate sizes, and latch styles over the years.
Ordering a replacement based only on appearance often leads to problems such as:
Taking accurate measurements before ordering dramatically increases your chances of finding the correct replacement the first time.
If you're shopping for a replacement, browse our selection of sliding door locks.
Fortunately, measuring a sliding door lock requires only a few basic tools:
Taking a few photos of the existing lock before removing it can also help verify compatibility later.
Most sliding door locks are secured with two screws that hold the inside and outside handles together.
After removing the handles, carefully slide the mortise lock out of the edge of the door.
Avoid forcing the lock if it seems stuck. Years of dirt or paint buildup can make removal more difficult.

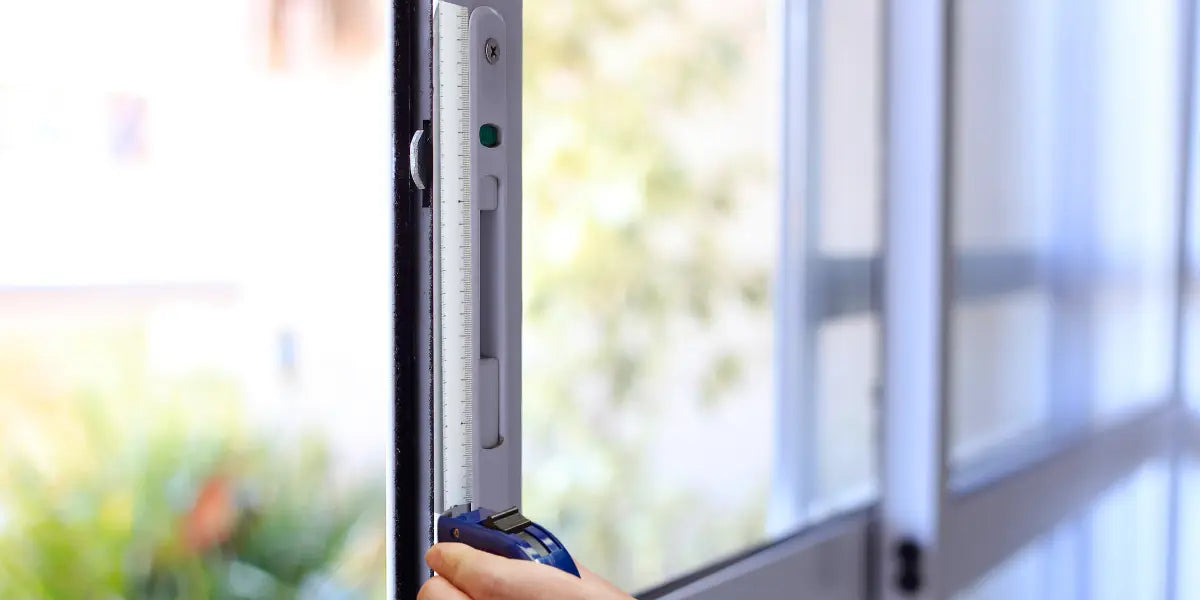

The faceplate is the visible metal plate located on the edge of the sliding door.
Measure:
These measurements are among the most important because the replacement faceplate needs to match the opening in your door.
Next, measure the mortise lock itself.
Record:
Even small differences can prevent the new lock from fitting properly inside the door.
Sliding patio door locks use different latch mechanisms depending on the manufacturer.
Common styles include:
Compare your existing latch carefully with replacement photos before purchasing.
Handle screw spacing is another critical measurement.
Measure from the center of one mounting hole to the center of the other.
Incorrect screw spacing is one of the most common reasons replacement handles don't fit properly.
The backset is the distance from the edge of the faceplate to the center of the handle spindle or mounting location.
Many sliding door lock manufacturers use different backsets.
Although it may seem like a minor measurement, it can determine whether the replacement operates correctly.
Many older locks have a manufacturer name or part number stamped directly onto the lock body.
Common manufacturers include:
If you find a model number, locating the correct replacement becomes much easier.
Countryside Locks carries replacement hardware for many of today's most popular brands.
When replacing a sliding door lock, avoid these common errors:
Taking a few extra minutes to verify every measurement can save hours of frustration later.
If you're still unsure after taking your measurements, don't worry.
At Countryside Locks, our experienced locksmiths help customers identify replacement sliding door locks every day.
Sending a few photos along with your measurements often allows us to recommend the correct replacement before you place your order.
If you need assistance, contact our team.
Whether you're replacing a worn mortise lock, upgrading your patio door security, or repairing an older sliding glass door, choosing the correct replacement starts with accurate measurements.
Browse our complete collection of replacement sliding door locks, patio door hardware, and mortise locks to find the right solution for your project.
With the proper measurements and the right replacement lock, your sliding door can operate smoothly and securely for years to come.
