Andersen Frenchwood Active Panel 3-Point Lock Multipoint Lock FWH68 Door- Stainless Steel (1988 to present)
Andersen ACTIVE 3- Point Lock Mechanism
Frenchwood Hinged Patio Door with locking hooks at top and bottom
Made of Stainless Steel
This 3-point lock fits Andersen 6 foot 8 inch tall Frenchwood Hinged Doors built from 1988 - present.

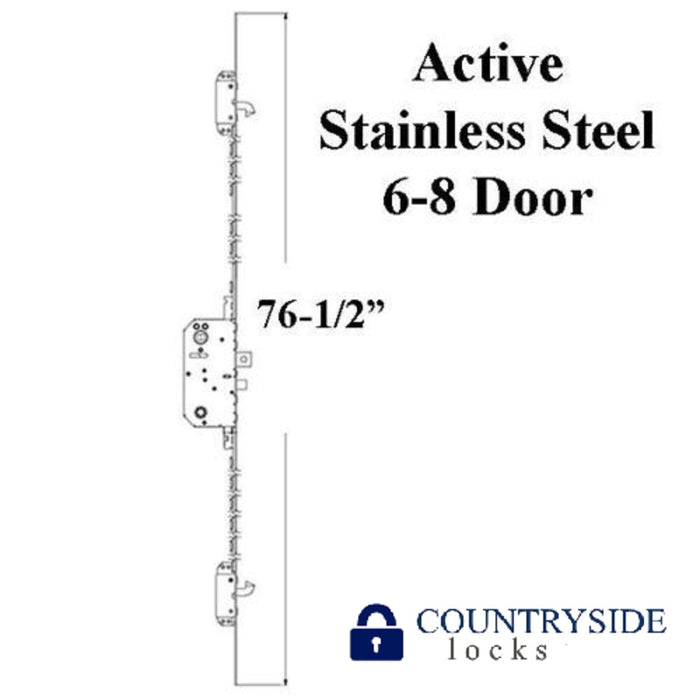

Overall Length: 76-13/32 inch
Faceplate Width: 7/8 Inch.
Backset: 2 inch
Handle Spacing (PZ): 4-3/16
Center of Deadbolt to Center of Spring latch: 1-3/8 inch
Handle Height: 36-1/8 inch
Bottom Hook Location: 31-1/8 Inches (center of handle to center of hook)
Top Hook Location: 35-1/2 inches - (center of Handle to center of hook)
Note: Andersen Frenchwood hinged doors have 4 heights;
6-8 door panel = 76-7/16
6-11 door panel = 79-3/8
7-6 door panel = 86-7/16 (special order)
8-0 door panel = 93-1/2 (special order)
Most Andersen patio door locks have a 7 digit part number on the face plate (this one is 2579771)
This Andersen patio door lock is interchangeable with the older zinc dichromate (gold colored) Active Models.
