Atrium Door Lock Replacement Exact Replacement For Atrium Doors-Countryside Locks

Atrium Door Lock Replacement Exact Replacement For Atrium Doors

by Atrium

$119.99 - $139.99
$119.99
$139.99
$139.99 - $139.99
$139.99
Color: Brass

 One Day Sale

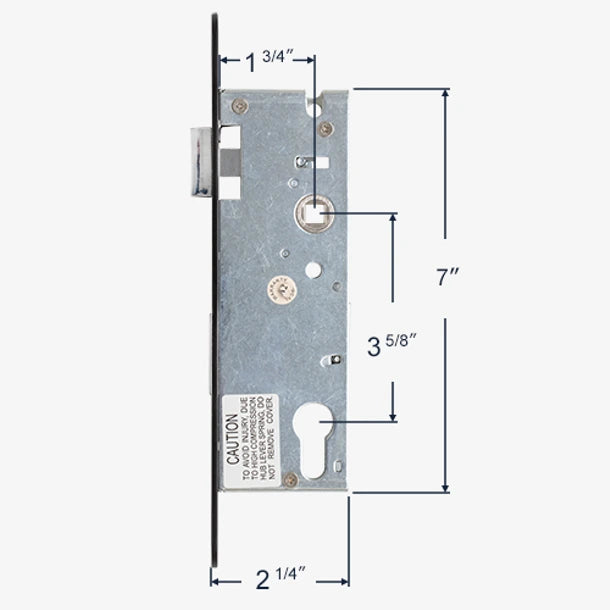

Heavy duty mortise lock-set made for a wood hinged Atrium patio door. Fits doors from 1-3/8" to 1-7/8" thick. Forged solid brass with polished brass finish; lock chassis is high pressure cast; latch face, mortise cylinder, escutcheons, and levers are all of solid brass.

Levers: 4 -1/2 Inch Solid Brass Mortise Lock
Backset: 1-3/4 inch (45mm) narrow stile
Door thickness: 1-3/4 inch
Lock faceplate measures: 15/16 by 9-5/8 inches.
Handle Escutcheon Plate: 1-3/16 x 8-1/4 Flat, 3 screw holes, solid brass
Cylinder Type: Single cylinder lock, Crescent thumb turn inside.
Atrium Keyed Cylinder: rekeyable Schlage SC-1 keyway with 2 keys
Spindle for handle: 5/16 (8mm) x 3-1/4 inch (83mm) on the Square.
Distance from the center of handles to center of Cylinder 3-5/8 inches (92mm)
Handing: This handle set can be used in Left and Right hand applications.

Customer Reviews

Based on 234 reviews
74%
(174)
11%
(26)
4%
(10)
4%
(9)
6%
(15)
J
John Mashburn
It was an absolutely perfect fit.

Luckily the door hinges had the Atrium logo on them. Your. Website made it easy to locate the exact match.

B
Bonnie Touron
Atrium door lock

Door lock fit perfectly, arrived quickly!!

N
Nancy Mathias
Very nice looking and works well but replacement has slightly larger handles

The bronze Atrium door lock was packaged well, works well and looks great but there’s a size difference from the satin nickel set I purchased a few years ago. The bronze handles on the replacement set are a little larger making it impossible to slide the bushing on the stem of the handle. I thought it might flex and go on with pressure but the plastic bushing cracked. As it turned out, it wouldn’t have helped if had gone on because the trim opening was only big enough for the base of the handle alone. Still very nice and glad I bought it.

S
Steven Naughton

Atrium Door Lock Replacement Exact Replacement For Atrium Doors

L
Leanna Williams
Exactly what I ordered

Perfect! Works great and looks fabulous
