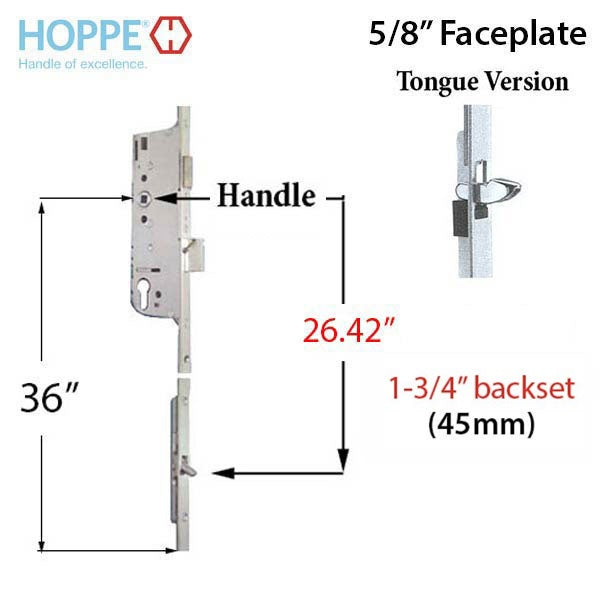

Hoppe Multipoint Lock 16MM Manual 45/92 Gear, Tongue At 26.42", 1" D/B, 36" HH

by HOPPE

Original price $174.99 - Original price $174.99
Original price
$174.99
$174.99 - $174.99
Current price $174.99
Hoppe Tongue Version, Multi-point Lock bottom gear for Active Door
HLS9000 MP Manual Gear, 90033 Manual Tongue Version

Faceplate Width: .63 inch (16mm) Stainless Steel
Backset: 1.75 inch (45mm)
Deadbolt throw: 1 inch (25.4mm)
Handle Height: 36.00 inch (914mm)
Bottom Tongue Position: 26.42 inch (671mm)
Maximum Cutoff: 4.53 inch (115mm)


Version: Tongue, Horizontal locking device between handle and bottom of door
Function: Manual Locking, lift handle to lock Tongue
Includes: As Shown, Bottom assembly only, does not include additional extensions or other components.
