Hoppe Multipoint 16mm Manual 35/92 Gear with Tongue, 1" Deadbolt & 36" Handle Height
Hoppe 16mm Manual 35/92 Gear with Tongue, 1" Deadbolt & 36" Handle Height
Hoppe 16mm Manual 35/92 Gear with Tongue, 1" Deadbolt & 36" Handle Height | All About Doors and Windows (Tongue Version/Manual Gear) 5 screw installation

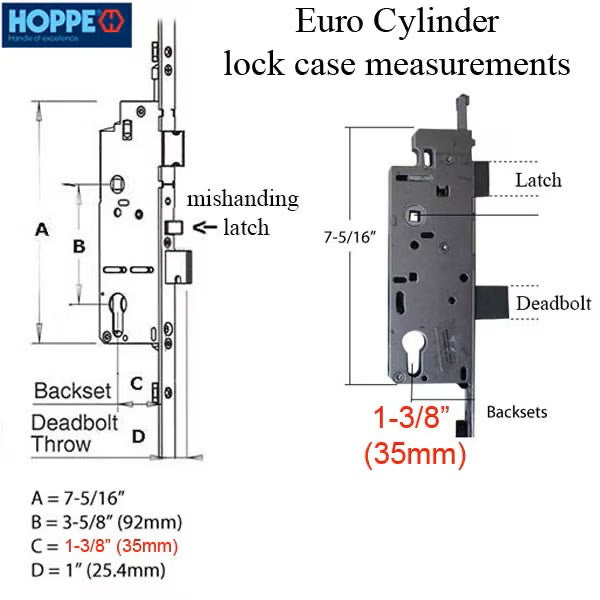

Faceplate: 5/8 inch (15.875mm)
Backset: 1-3/8 inch (35mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36.00 inch (914mm)
Maximum Cutoff 1.18 inches.

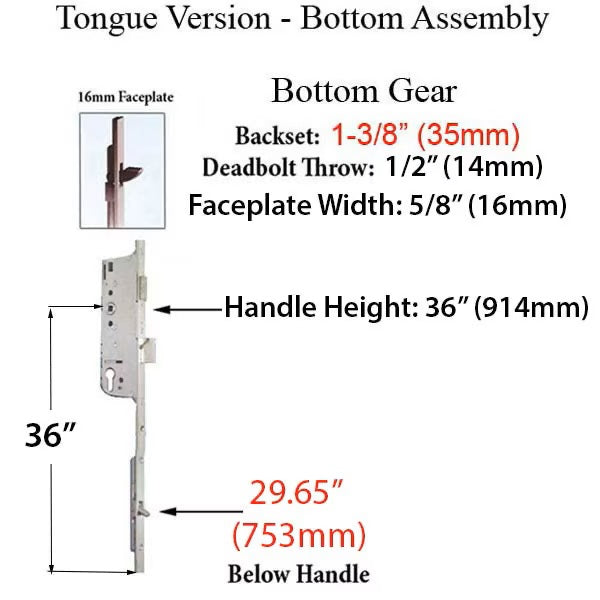

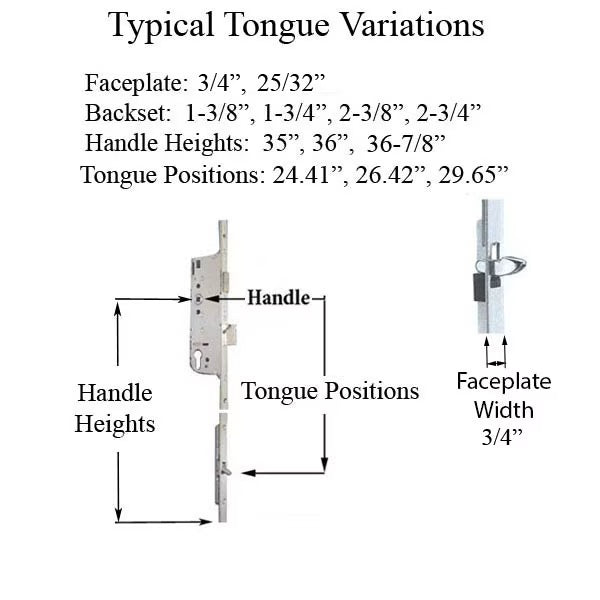

29.65 Tongue Position from center of handle
To Change Handling/Reversing Latch:
Latch handing may be changed by pulling spring latch out and turned in the opposite direction and released. May need to use pliers.
