Hoppe Multipoint 20mm Hoppe 45/92 Gear Tongue @ 24.41"

HOPPE HLS9000 Multipoint Lock with Manual Gear, Tongue Version for Active Door with 20mm Faceplate
Lower Assembly includes lock case with face plate and bottom tongue attached

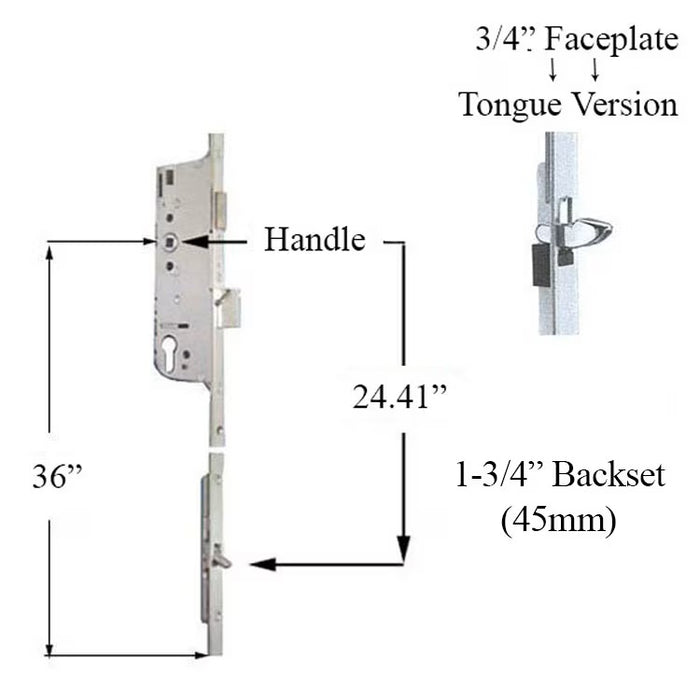

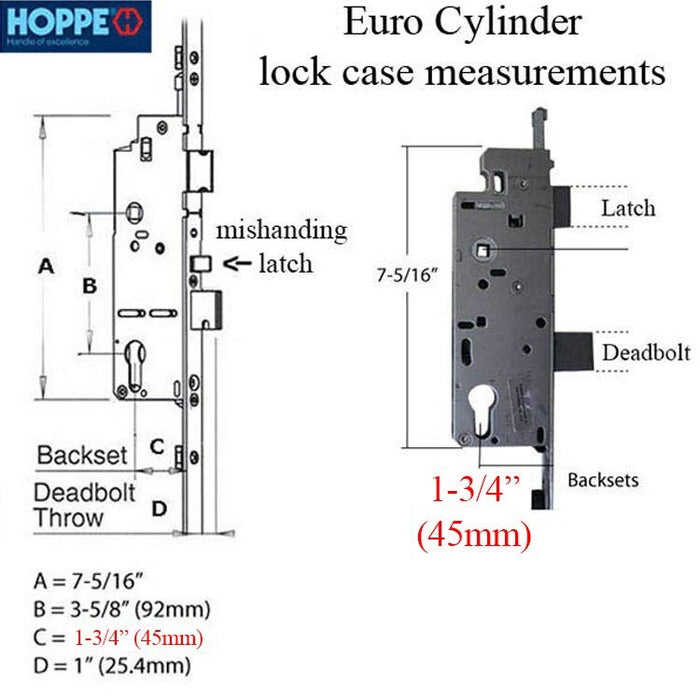

Specifications:
Faceplate Width: 3/4", 0.78" (20mm),
Backset: 1.77" (45mm),
Deadbolt Throw: 1.00" (25.4mm)
Handle Height: 36" (914mm),
Bottom Tongue Position: 24.41" (620mm),
Maximum Cutoff : 6.30" (160mm)


Includes:
As Shown, Bottom assembly only, does not include additional upper extensions or other components.

Operation: Manual Function
To lock door, Lift handle and then turn thumb turn or Key to extend deadbolt
To Unlock door, Turn Thumbturn or key and then depress lever.
